O n e T o u c h I n s p e c t i o n

Ease of use
Just place the part on table and press a button to inspect.

Instant Inspection
Obtain the result in less than 5 s after pressing the button.


100% Inspection
Once a part is configured, any number of parts can be inspected continuously.

Operator friendly
Anyone who is aware about the part name can inspect.

True Position

Perpendicularity

Parallelism

Straightness

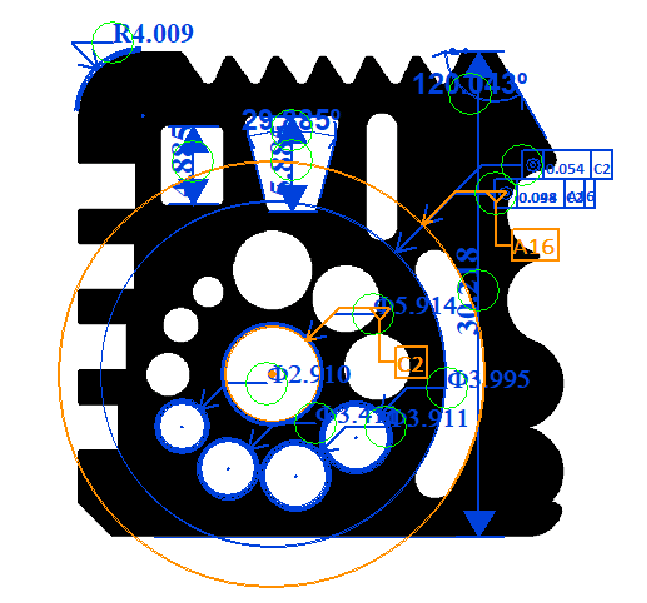

GD&T

Root Circle

Outer Circle

Over the pin dia

Under the pin dia
Gear Measurements

Circularity

Concentricity

Radius

Diameter
Circle Measurements

line Angle

3 Point Angle
Angle Measurement

Multipart Inspection
Any number of parts that can be placed inside the measurement area can be inspected at the same time.
Orientation Independent
The machine automatically detects the position and orientation of the part placed for inspection as machine functions independent of reference line.
Profile / Contour inspection
The profile/contour of a part can be inspected at the touch of a button

DXF Import
The CAD drawing of the part can be directly matched with the part placed for inspection



Data Analytics and Report
Computation of Cp/Cpk, trends and average with graphical representation
Compilation of data and images along with part history

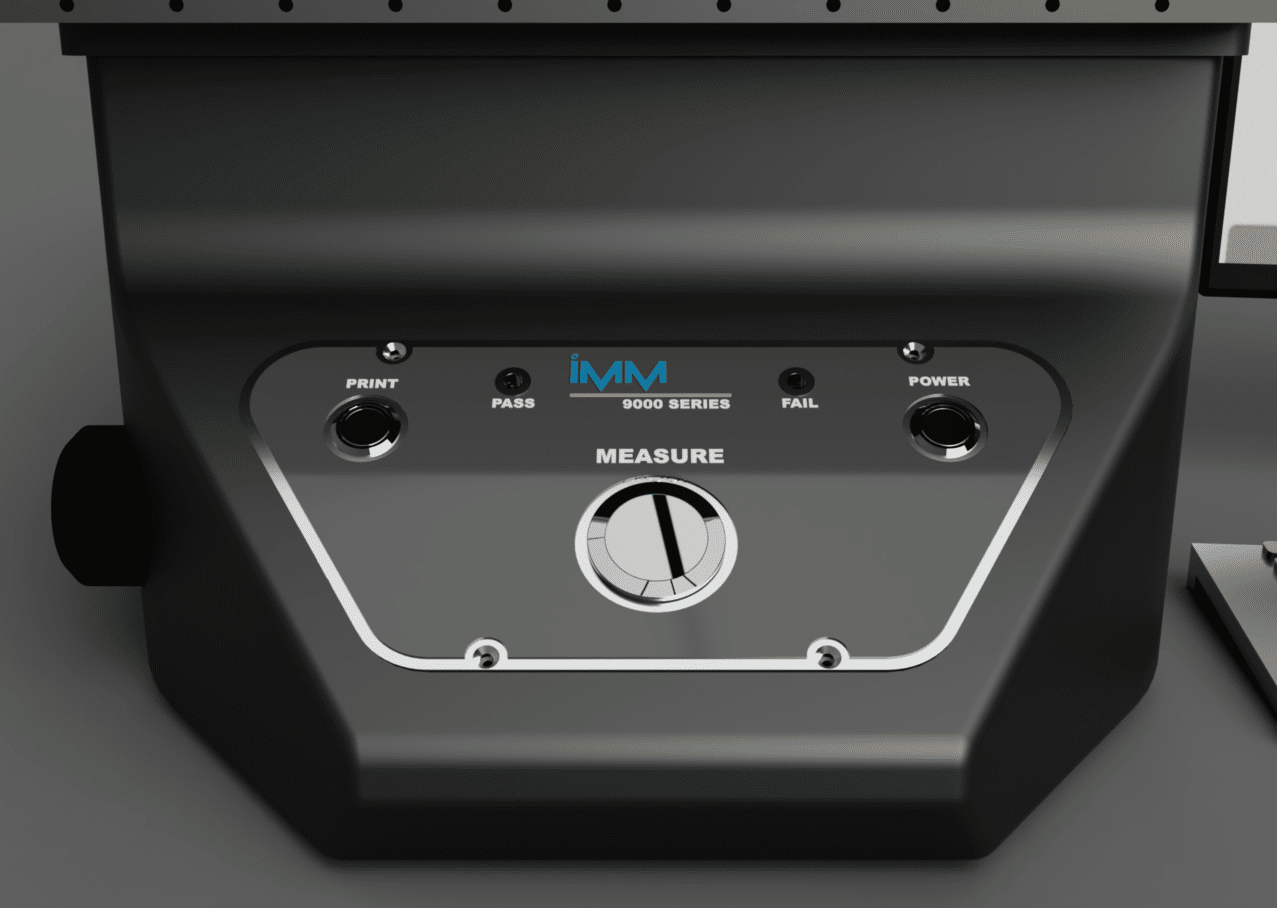

One Touch

Once a part has been configured, just place and press the button to inspect.
Less than 10 secs for fixed stage
Less than 1 min for moving stage
Once a part has been configured, just place and press the button to inspect.
Less than 10 secs for fixed stage
Less than 1 min for moving stage

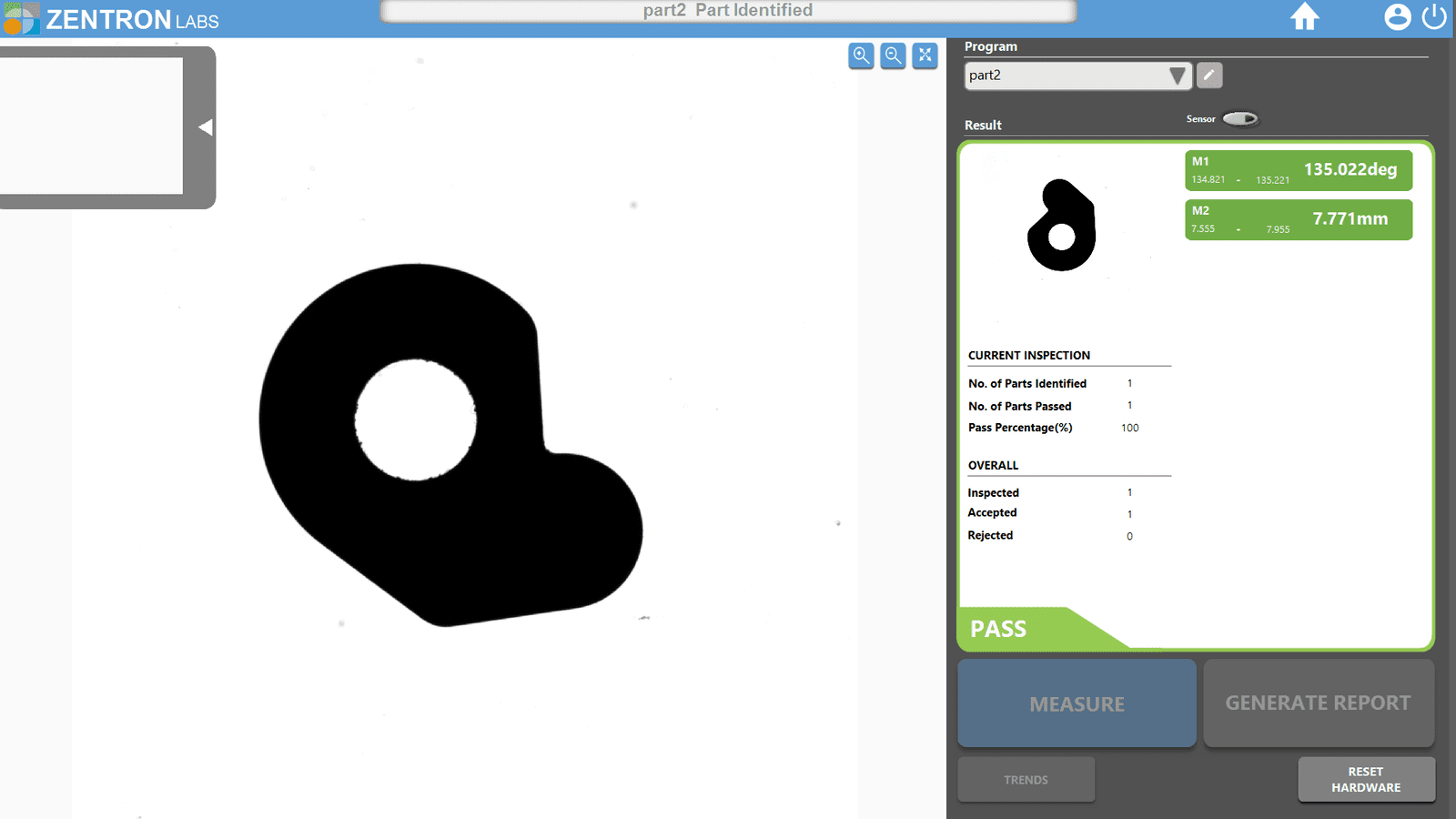

Auto Part Recognition
A configured part is automatically recognized by the machine
Any part can be inspected at any point of time, by anyone.
A configured part is automatically recognized by the machine
Any part can be inspected at any point of time, by anyone.

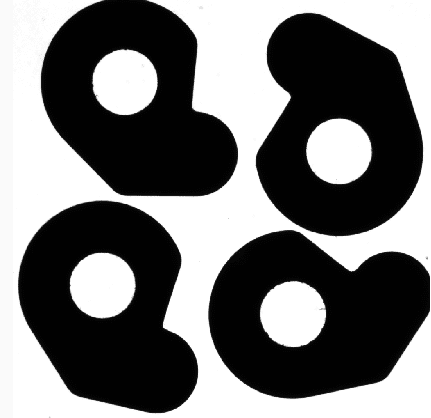

Multi Part Inspection
Any number of parts that can be placed inside the measurement area can be inspected at the same time.
Reduces inspection time

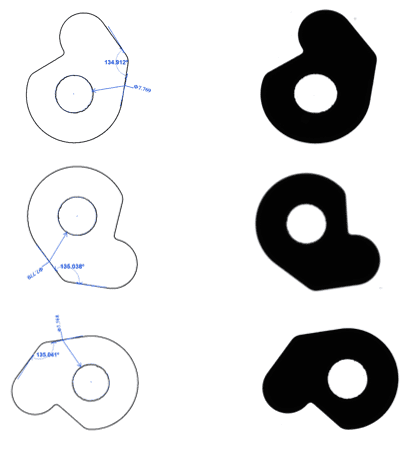

Auto Orientation
- Automatic detection of position and orientation of the part placed for inspection.
- Machine functions independent of reference line.
- Automatic detection of position and orientation of the part placed for inspection.
- Machine functions independent of reference line.
Part can be placed in any orientation, without reducing the reliability of the measurement

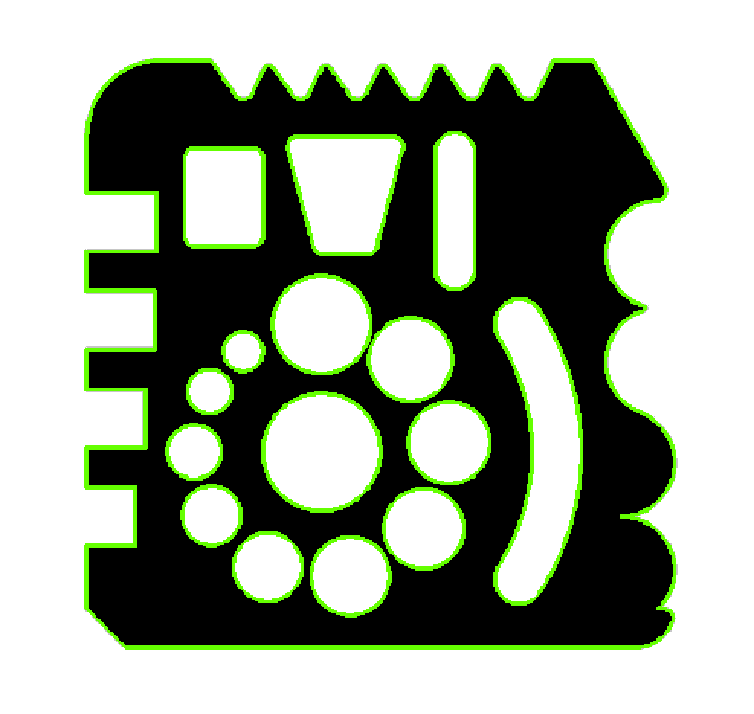

Auto Edge Detection
Automatically detects circular and linear edges of the part
Reduces configuration time & error

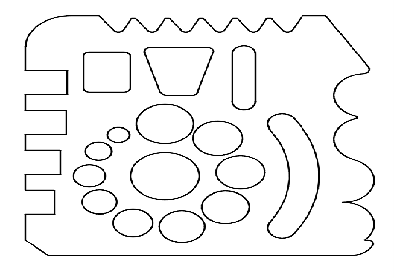

DXF import

The CAD drawing of the part can be directly matched with the part placed for inspection.
Eliminates configuration time
Eliminates configuration time

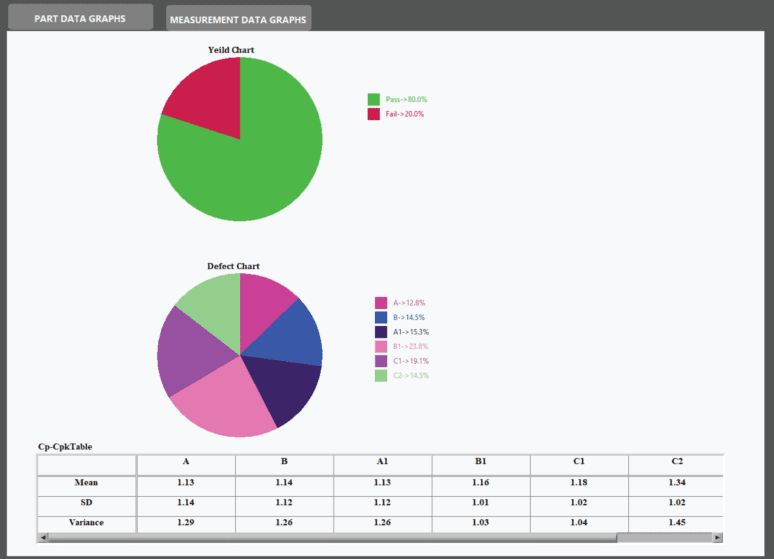

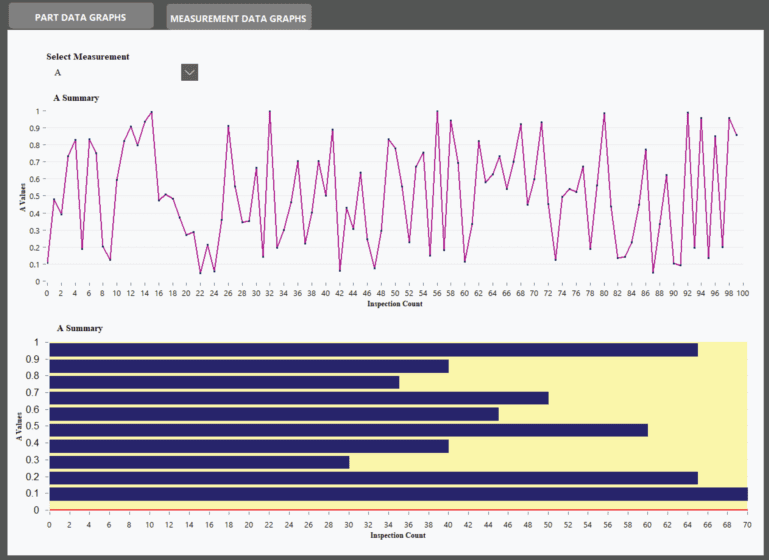

Data Analytics
Compilation of Cp/Cpk, trends, average, etc with graphical representation.

Report
