Instant Measurement Machine

9 0 0 0  S E R I E S

9010
9020
9030
9040
9010

 i M M - 9 0 1 0


Model Wide InspectionPrecision Inspection
Measurement area  100 mm dia56 mm dia
9020

 i M M - 9 0 2 0


 Model Wide InspectionPrecision Inspection
Measurement area  300 * 80 mm 100 * 200 mm
9030

 i M M - 9 0 3 0


Model Wide InspectionPrecision Inspection
Measurement area  200 * 200 mm175 * 175 mm
9040

 i M M - 9 0 4 0


ModelWide Inspection
Measurement area 300 * 200 mm

9000 SERIES

9000
9010
9020
9030
9040

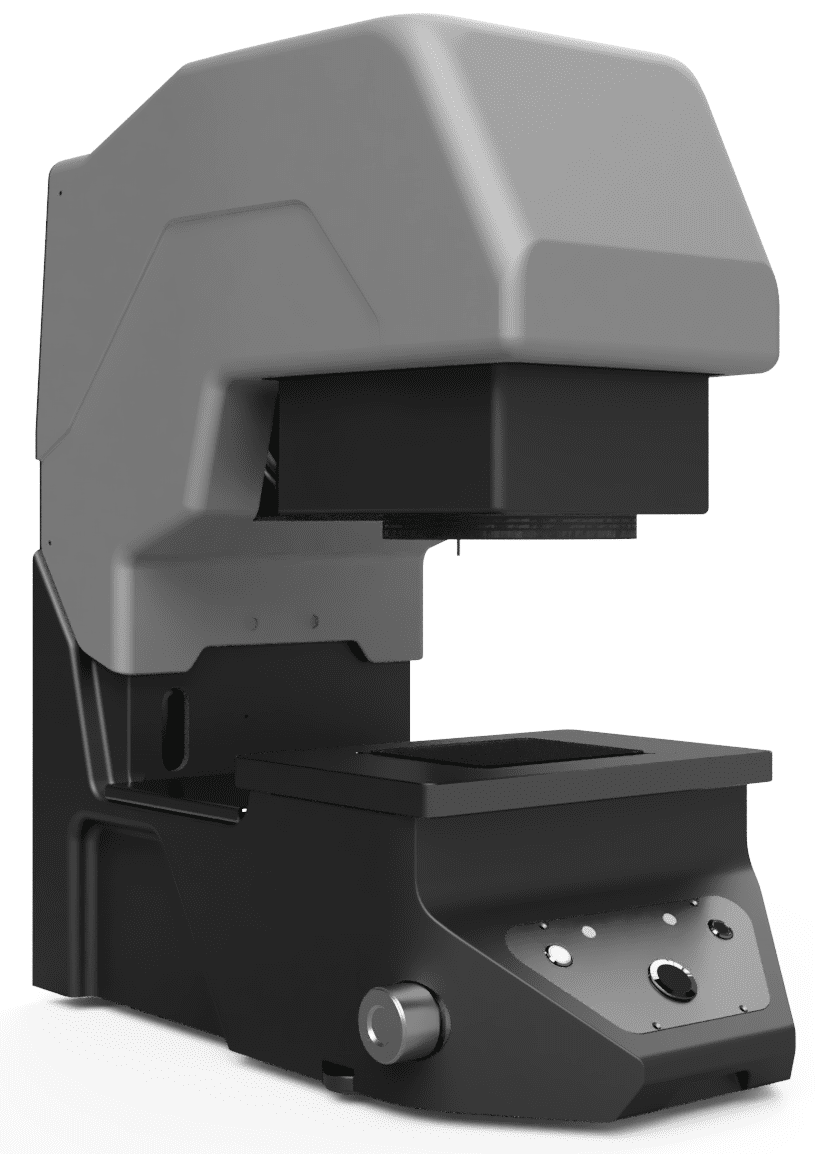

9000

I M M - 9000


TableFixed 
( Fixed Z axis )
 Image Measurement 120 mm diameter
Measurement Area120 mm diameter

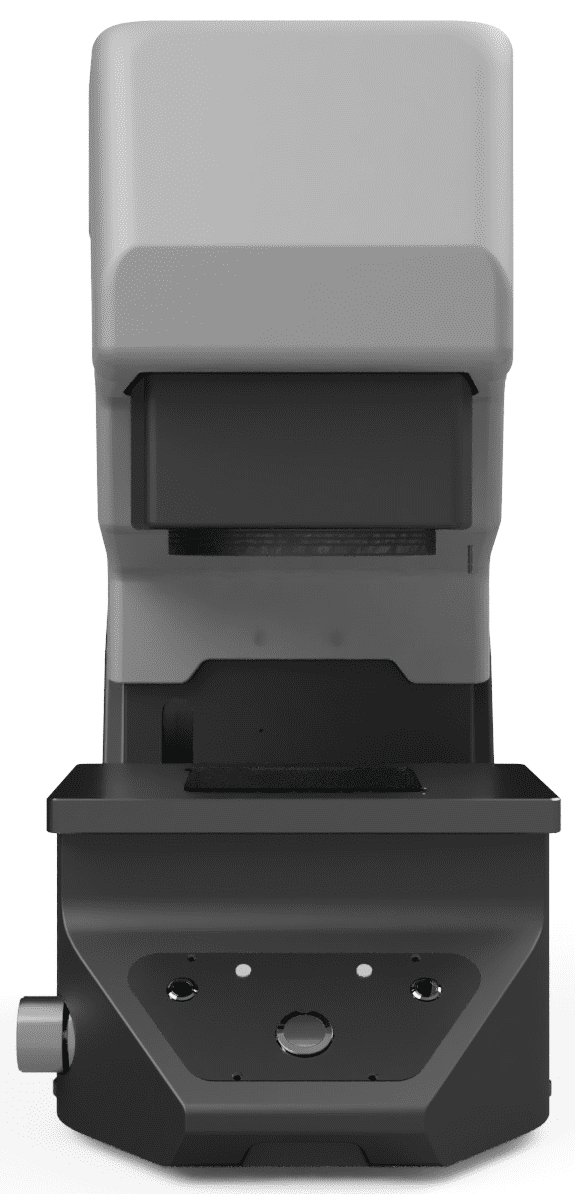

9010

I M M - 9010


TableFixed Stage
 Image Measurement 120 mm diameter
 Measurement Area 120 mm diameter

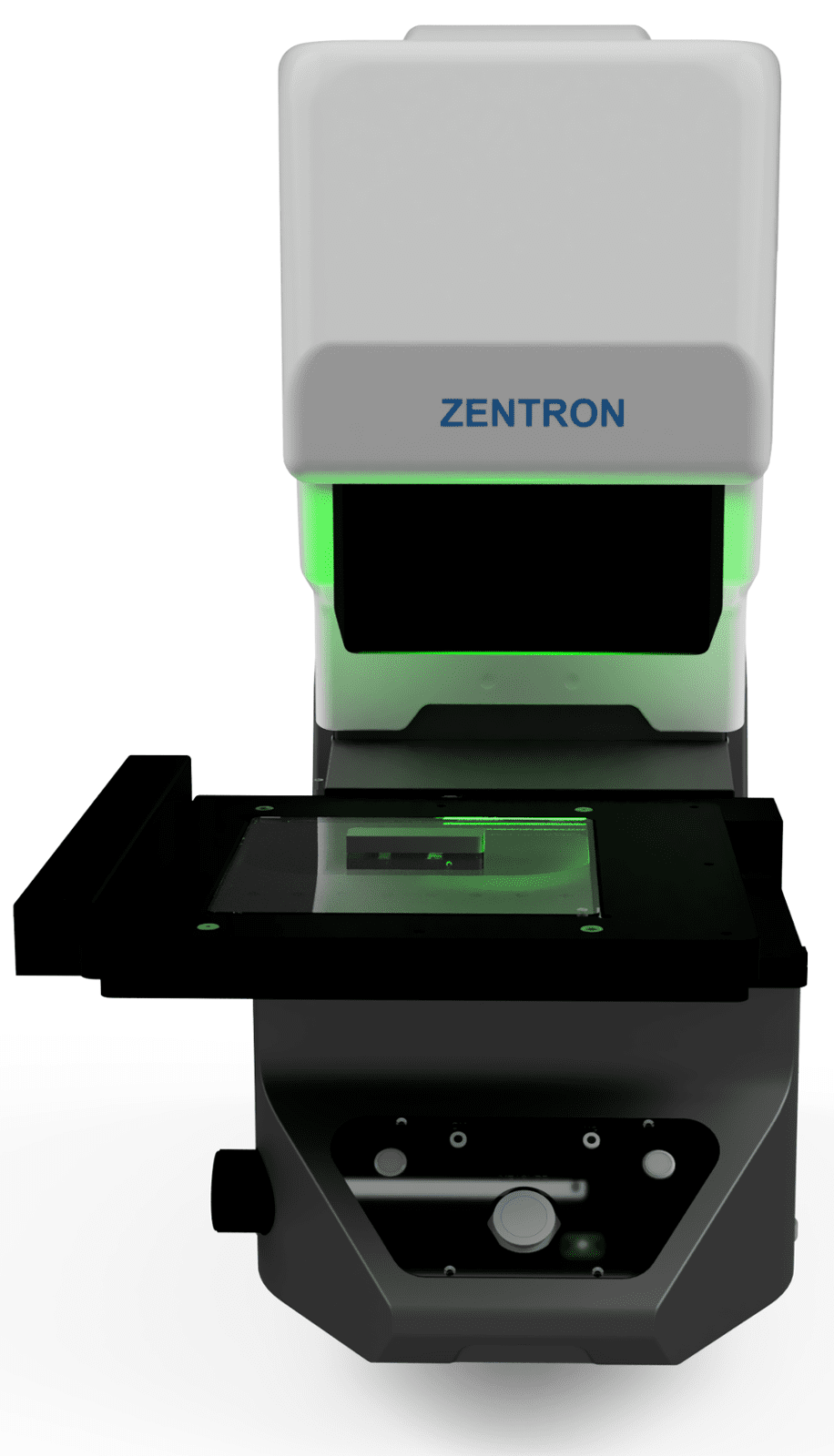

9020

I M M - 9020


 TableMoving Stage
( X axis )
 Image Measurement 84 * 84 mm
Measurement Area100 * 120 mm

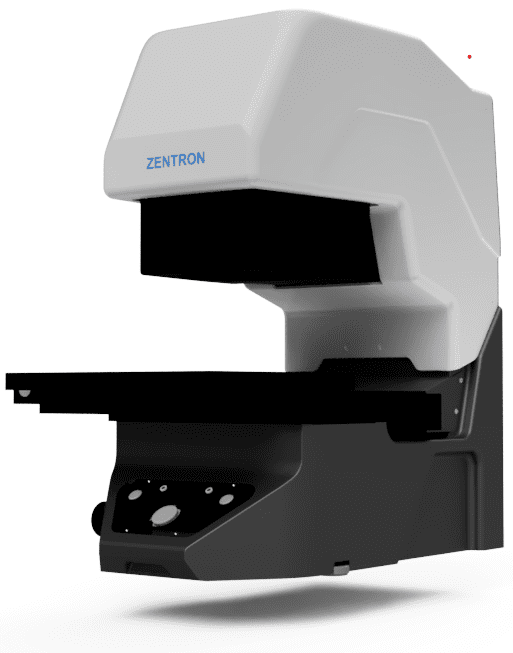

9030

I M M - 9030


TableMoving Stage
( XY axis )
Image Measurement77 * 77 mm
Measurement Area220 * 220 mm

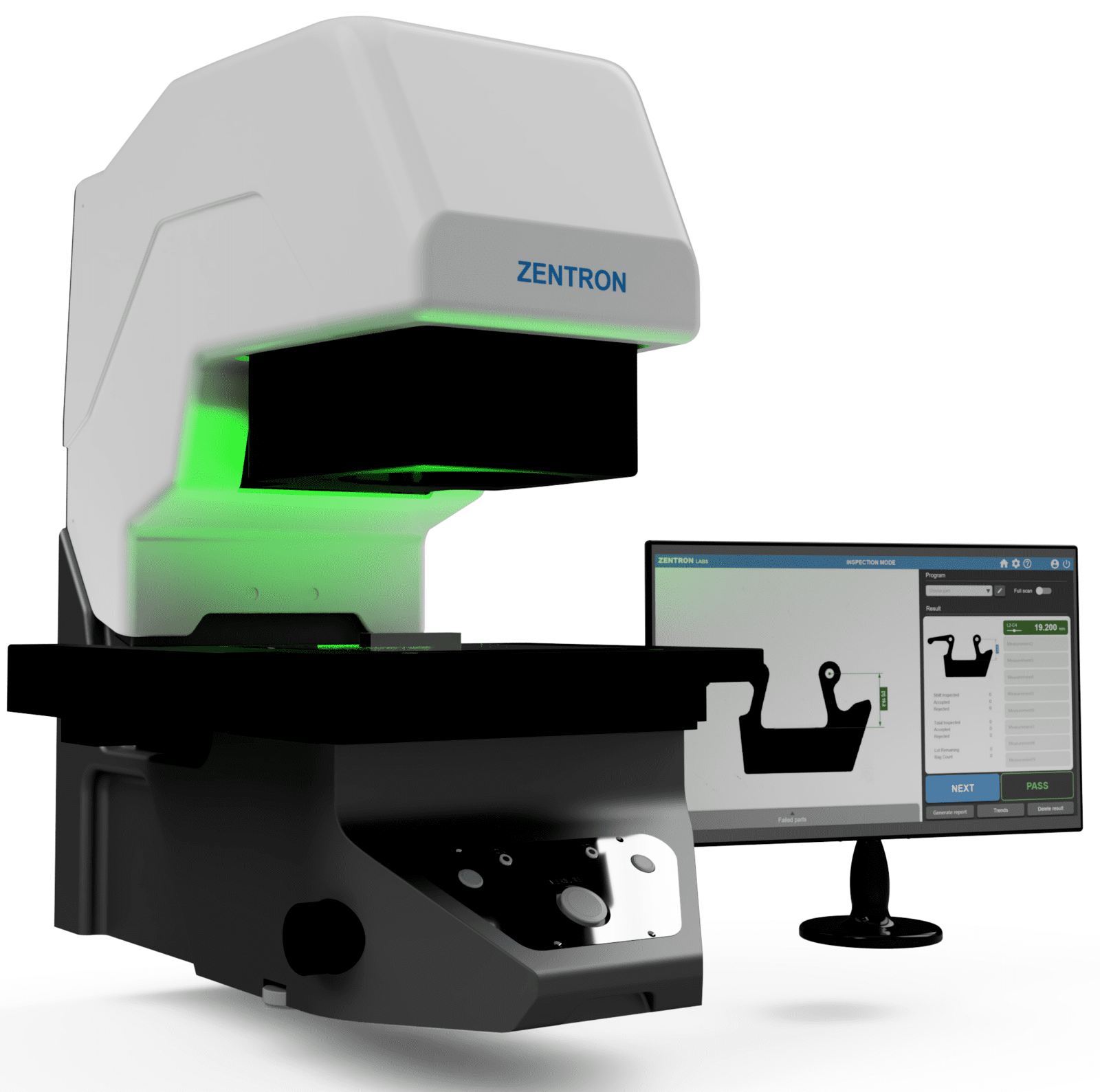

9040

I M M - 9040


TableMoving Stage
( XY axis )
 Image Measurement 77 * 77 mm
Measurement Area300 * 250 mm
